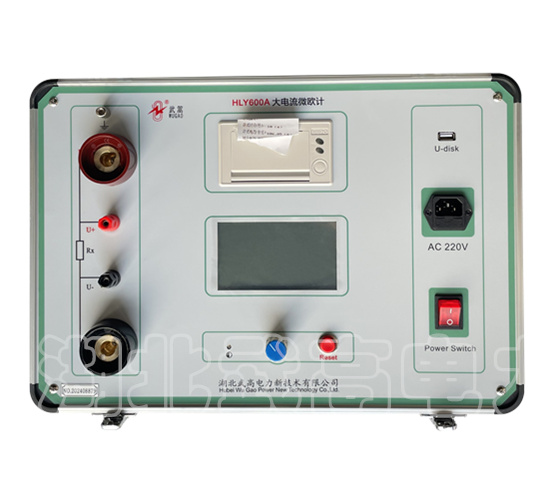

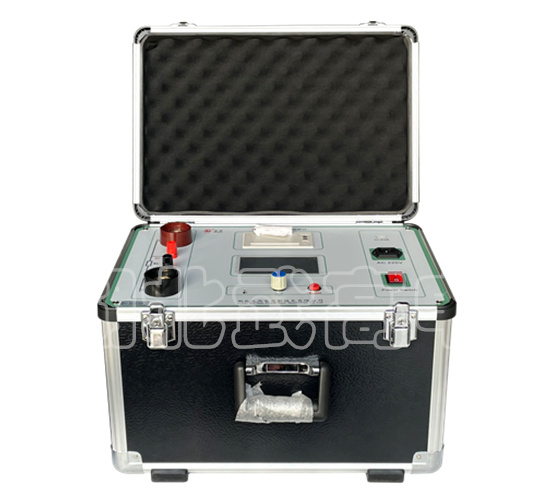

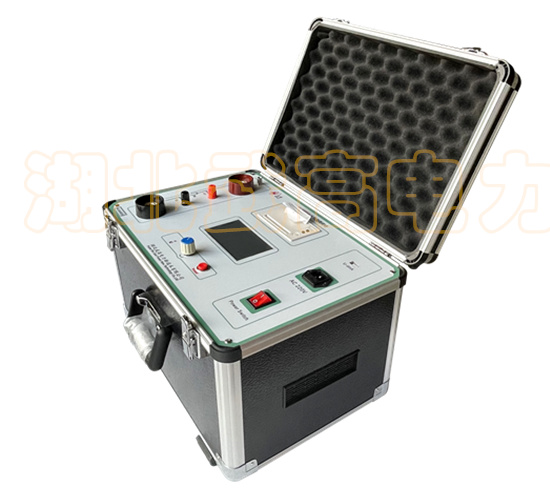

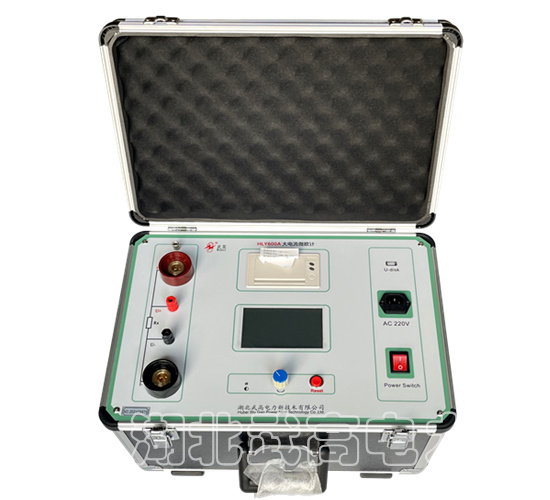

HLY600A大電流微歐計（回路電阻測試儀）
產品用途
用于高壓開關接觸電阻（回路電阻）的高精度測量，也適用于其它需要大電流、微電阻測量的場合。
測量范圍
1～1999μΩ
測試電流
DC 100A、200A、400A、600A 四檔固定輸出
測量精度
0.5%±1d
客戶服務熱線
027-87409251
客戶服務熱線
13871255353
產品概述 Product Overview
HLY600A大電流微歐計（回路電阻測試儀）根據中華人民共和國新的電力執行標準DL/T845.4-2004，采用高頻開關電源技術和數字電路技術相結合設計而成。它適用于開關控制設備回路電阻的測量。其測試電流采用國家標準推薦的直流100A和200A。可在電流100A的情況下直接測得回路電阻，也可以在電流200A、400A或600A的情況下直接測得回路電阻，最后的測試結果都用數字顯示出來。該儀器測量準確、性能穩定，符合電力、供電部門現場高壓開關維修和高壓開關廠回路電阻測試的要求。
The HLY600A high-current micro-ohmmeter (loop resistance tester) is designed based on the new power execution standard DL/T845.4-2004 of the People's Republic of China，utilizing a combination of high-frequency switching power supply technology and digital circuit technology。It is suitable for measuring the loop resistance of switch control equipment. Its test currents adopt the DC 100A and 200A recommended by national standards。 It can directly measure the loop resistance at a current of 100A，as well as at 200A, 400A, or 600A。The final test results are displayed digitally。This instrument provides accurate measurements and stable performance， meeting the requirements of on-site high-voltage switch maintenance by power and electricity supply departments，as well as loop resistance testing in high-voltage switch factories。
產品用途 Product Application
該儀器適用于高壓開關接觸電阻（回路電阻）的高精度測量，同樣適用于其它需要大電流、微電阻測量的場合。
This instrument is suitable for high-precision measurement of contact resistance (loop resistance) in high-voltage switches，and it is equally applicable to other scenarios requiring large current and micro-resistance measurements。
性能特點 Performance Characteristics
1.大電流：采用最新電源技術，能長時間連續輸出大電流，克服了脈沖式電源瞬間電流的弊端，可以有效的擊穿開關觸頭氧化膜，得到良好的測試結果。
2.抗干擾能力強：在嚴重干擾條件下，液晶屏最后一位數據能穩定在±1個字范圍內，讀數穩定，重復性好。
3.使用壽命長：全部采用高精度電阻，有效的消除環境溫度對測量結果的影響，同時軍品接插件的使用增強了抗振性能。
4.攜帶方便：體積小、重量輕。
1. High Current:：Utilizing the latest power technology, it can continuously output high current for extended periods， overcoming the drawbacks of pulsed power's instantaneous current，This effectively breaks down the oxidation film on switch contacts，resulting in excellent test results。
2. Strong Anti-interference Capability：Under severe interference conditions，the last digit of the LCD display remains stable within ±1 digit, ensuring stable readings and excellent repeatability。
3. Long Service Life: Employing high-precision resistors，it effectively eliminates the impact of ambient temperature on measurement results。Additionally， the use of military-grade connectors enhances its vibration resistance。
4. Convenient Portability： Its small size and light weight make it easy to carry。
